A restaurant floor plan is an operational proposal, not simply a dining-room outline. At Samriddhi Towers in Katni, the supplied second-floor drawing labels a restaurant, kitchen, manager room and utility area. That makes it a useful document for a hospitality operator's initial enquiry, provided the distinction between design intention and current readiness remains clear. This guide examines the relationships between those spaces and the questions an operator should investigate before developing a concept. It does not establish food-service permission, installed equipment, exhaust capacity or an available restaurant tenancy. A viable restaurant brief needs the current building, the proposed menu and the service strategy to be reviewed together.

Reference-based facade visualisation of Samriddhi Towers in Katni — Architectural visualisation or illustrative concept; not a current site photograph. Confirm the actual premises during a viewing.

On this page

Read the four labelled functions as a connected system

The restaurant is dimensioned 27 feet 4.5 inches by 49 feet and labelled 1,286 square feet. The kitchen is marked 23 feet 6 inches by 16 feet 9 inches. A manager room measures 17 feet 3 inches by 11 feet, and the utility area is shown as 29 feet by 10 feet. These spaces suggest a proposed division between dining, preparation, administration and support. They do not determine the final workflow. Start by tracing the movement of ingredients, staff, prepared food, used crockery and waste. If those routes conflict, a large dining space may still be difficult to operate. Ask a hospitality designer to review the measured current layout against the specific concept.

Let the menu define equipment needs

A café, a full-service restaurant and a preparation-light dining concept can require very different equipment and services. Write the intended menu categories before discussing kitchen fit-out. Identify which processes involve heat, washing, refrigeration, storage or specialist preparation. Then list the equipment that those processes require, including the space needed for access and maintenance. Do not assume that a room labelled kitchen already has the necessary power, ventilation, drainage or structural suitability. An equipment supplier's dimensions can help build a realistic layout, but technical coordination still matters. The proposed kitchen is a starting envelope within which the menu and service requirements must be tested, not a guarantee that every culinary concept will fit.

Separate clean and dirty movement

The flow of food and the return of used crockery should be considered from the beginning. Identify where clean service items are stored, where used items arrive and where washing occurs. Check whether staff carrying prepared food would cross the main waste or receiving route. A drawing may not show these operational details because they belong to a later design stage. That does not make them optional. Sketch the principal movements at the busiest service period and look for repeated crossings or narrow turns. Consult relevant food-service and building professionals about the requirements for your intended operation. The purpose of this review is to reveal coordination needs before interior finishes make changes more expensive.

Investigate exhaust and ventilation routes in the building

A second-floor kitchen requires more than an opening in a wall. Establish whether an appropriate exhaust route exists or could be approved, where equipment would be located and how it would be maintained. Discuss the effect of heat, odour and noise on neighbouring spaces. Ask how replacement air would be addressed alongside extraction. The supplied floor plan does not establish these systems or their capacity. A qualified mechanical professional should inspect the actual building and assess the proposed cooking processes. Obtain clarity about permissions for any external equipment or alterations. A restaurant layout should not progress to equipment purchases while its basic ventilation strategy is still an assumption.

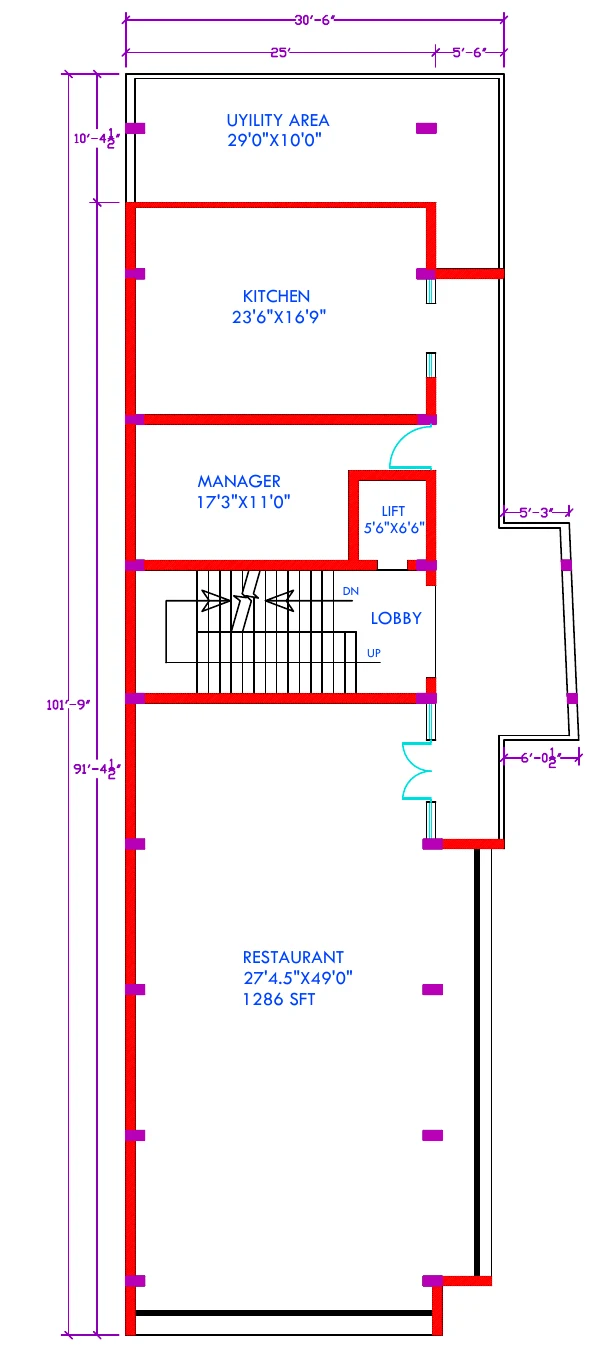

Second floor plan — supplied proposed architectural drawing — Extract from an owner-supplied proposed architectural drawing; not an as-built survey. Open the floor-plans page for original PDFs.

Plan deliveries, storage and waste as routine activities

Ingredients may arrive before customers, during service or in several small deliveries. Decide how they would reach the second floor and where they would be checked before storage. Investigate the actual lift, stair and loading arrangements rather than relying on a shaft label. Consider the dimensions and weight of routine deliveries and the route for maintenance or replacement equipment. Waste movement needs similar attention: identify where it would be held and when it could leave the premises without disrupting customers or shared areas. These questions influence staffing and operating practices. A dining room can be attractive while its service logistics remain impractical, so review both sides of the business together.

Test customer comfort without inventing a seat count

The restaurant hall's labelled area does not establish a safe or approved seating capacity. The final arrangement depends on furniture dimensions, circulation, service points, access, building requirements and the chosen dining experience. Start with a small set of realistic table layouts and trace how customers and staff move between them. Identify waiting, billing and any takeaway collection activity. Check how toilets are reached in the actual premises and whether that route works for customers. Ask the relevant professionals to assess capacity and compliance rather than deriving a seat count from a simple area formula. The website presents the source layout; it does not certify an operational restaurant design.

Reconcile the proposal with current conditions

The second-floor title block prints a built-up area of 3,147 square feet. The restaurant hall is separately labelled 1,286 square feet, and its printed dimensions yield a different rectangular product. Keep those distinctions visible when requesting information. Ask for the current measured plan, service locations, clear heights and the boundary of any offered tenancy. Establish whether the manager room and utility area are included in the same offer. Inspect completed construction and note any differences from the proposal. A restaurant operator should also ask who would carry out enabling work and what evidence of completion would be provided. A clear current-condition record supports a much more useful fit-out discussion.

Work through a service-period scenario

Imagine a delivery arriving while customers are being seated and staff are returning used crockery to the washing area. Trace all three movements on the plan. Then add a staff break, an equipment fault and a customer asking for directions to the toilets. The exercise is not intended to predict every eventuality. It tests whether routine overlaps have been considered. If all activity depends on one narrow passage or one shared access point, the operator needs a deliberate management plan or a different layout. Resolve the larger operational constraints before selecting decorative themes. A restaurant's interior identity becomes more convincing when the service arrangement behind it is practical and clearly understood.

Restaurant proposal-review worksheet

Prepare a menu and process list before discussing equipment positions. Mark the receiving point, food storage, preparation, cooking, service return, washing and waste holding zones. Identify every service that depends on the building rather than the tenant's own equipment. Ask for a site review of ventilation, drainage, power and equipment access. Record which permissions and technical assessments remain outstanding without assuming they will be obtained. Confirm the offered boundary and whether utility and manager spaces are included. Compare the current measured plan with the proposal. Keep a list of owner work and operator work. Only then develop an opening programme tied to verified readiness rather than the appearance of a restaurant label on a drawing.
